Among the various materials for industrial use, quartz glass is the material with the best light transmittance so it is commonly used for optical fibers for communications. Quartz-type optical fibers have little transmission loss so they are widely used in broadband long-distance transmission communications.
Main features
- Good light transmittance
- Small transmission loss
Applications
- Substrate tubes in the optical fiber manufacturing processes of modified chemical vapor deposition (MCVD) and plasma-enhanced chemical vapor deposition (PCVD)
- Jacket tubes used in the jacketing ("sleeving") process used in the production of cladded portions
Purity
| Na | K | Ca | Mg | Al | Fe | Ti | OH(*) | Cl(*) | |
|---|---|---|---|---|---|---|---|---|---|
| Sup.F300 | <20 | <5 | <5 | <5 | <50 | <5 | <10 | <1 | 2000 |
(Unit ppb) (*Unit ppm)
| Na～Ti | : ICP-AES |
|---|---|
| OH | : IR Absorption Spectrum |
| Cl | : Nephelometric Analysis |

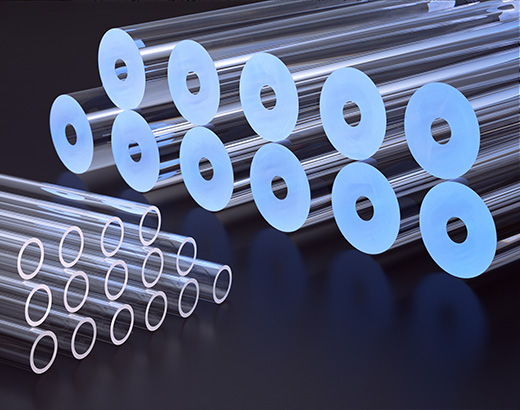

SUPRASIL-F300 Substrate Tube
Suprasil-F300 substrate tubes from Shin-Etsu Quartz Products Co., Ltd. (SQP) are used in MCVD (Modified Chemical Vapor Deposition) and PCVD (Plasma Chemical Vapor Depostion) processes.
Geometry
A wide variety of different tube sizes can be offered to match specific customer needs and preform designs.
| Typical geometrical properties (Example) | |||||
|---|---|---|---|---|---|
| OD (mm) |
WT (mm) |
Length (mm) |
Siding (mm) |
Ovality (mm) |
Bow (mm/m) |
| 20-50 | 1.5-4.0 | 1000-2000 | 0.1 | 0.08 | 0.3 |
SUPRASIL-F300 Jacket Tubes
High purity jacket tubes (also known as overclad tubes) from SQP can be used as high-strength jacketing material for all current fiber production technologies. In the jacketing process, core rods are overcladded with jacket tubes either offline on a separate lathe or online during fiber drawing.
Geometry
A wide variety of jacket tube sizes can be provided to match specific customer needs and preform designs.
| Typical geometrical properties (Example) | |||||
|---|---|---|---|---|---|
| OD (mm) |
WT (mm) |
Length (mm) |
Siding (mm) |
Ovality (mm) |
Bow (mm/m) |
| 40-100 | 4.0-40 | 800-2300 | 0.18 | 0.12 | 0.3 |
